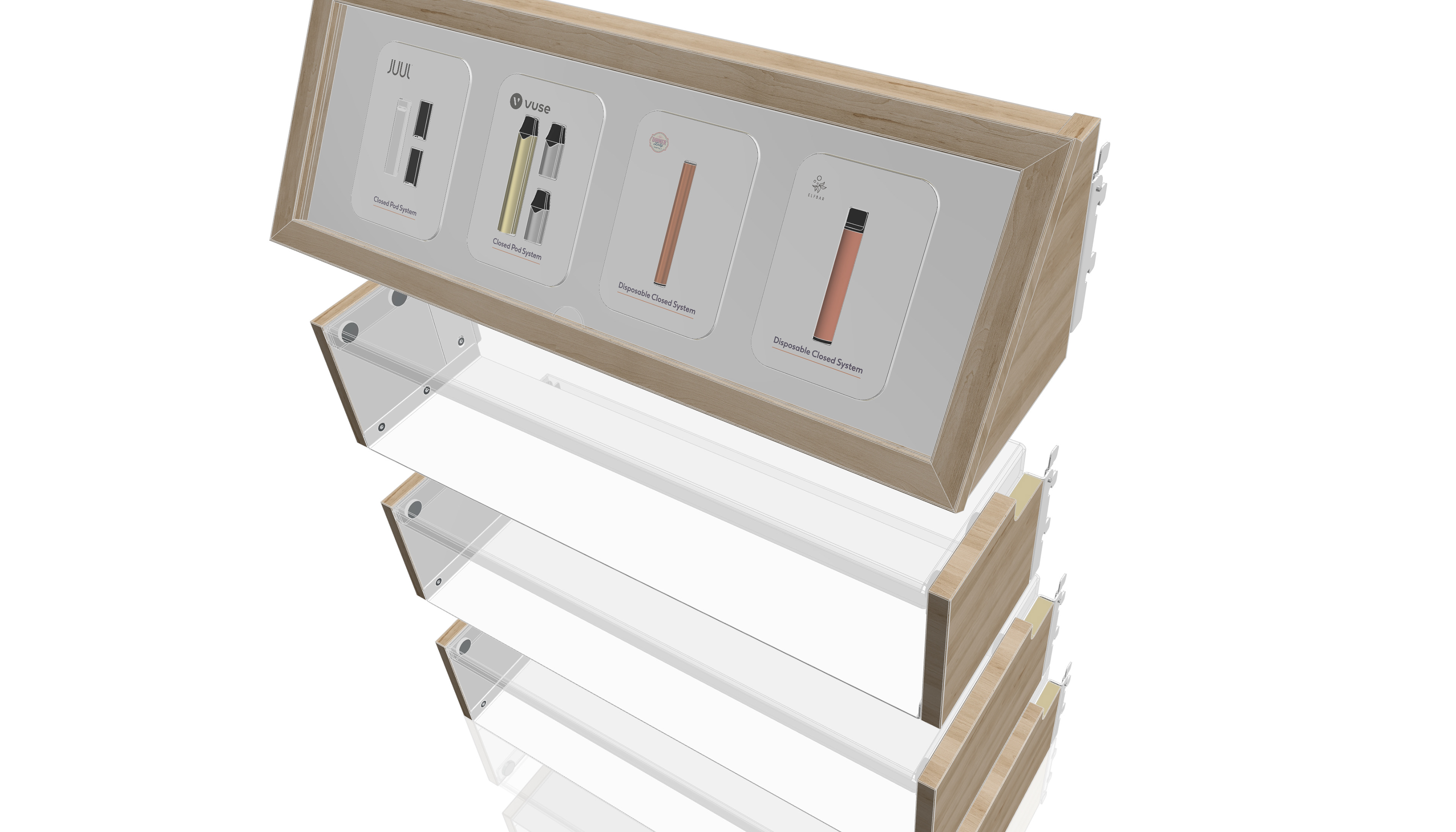

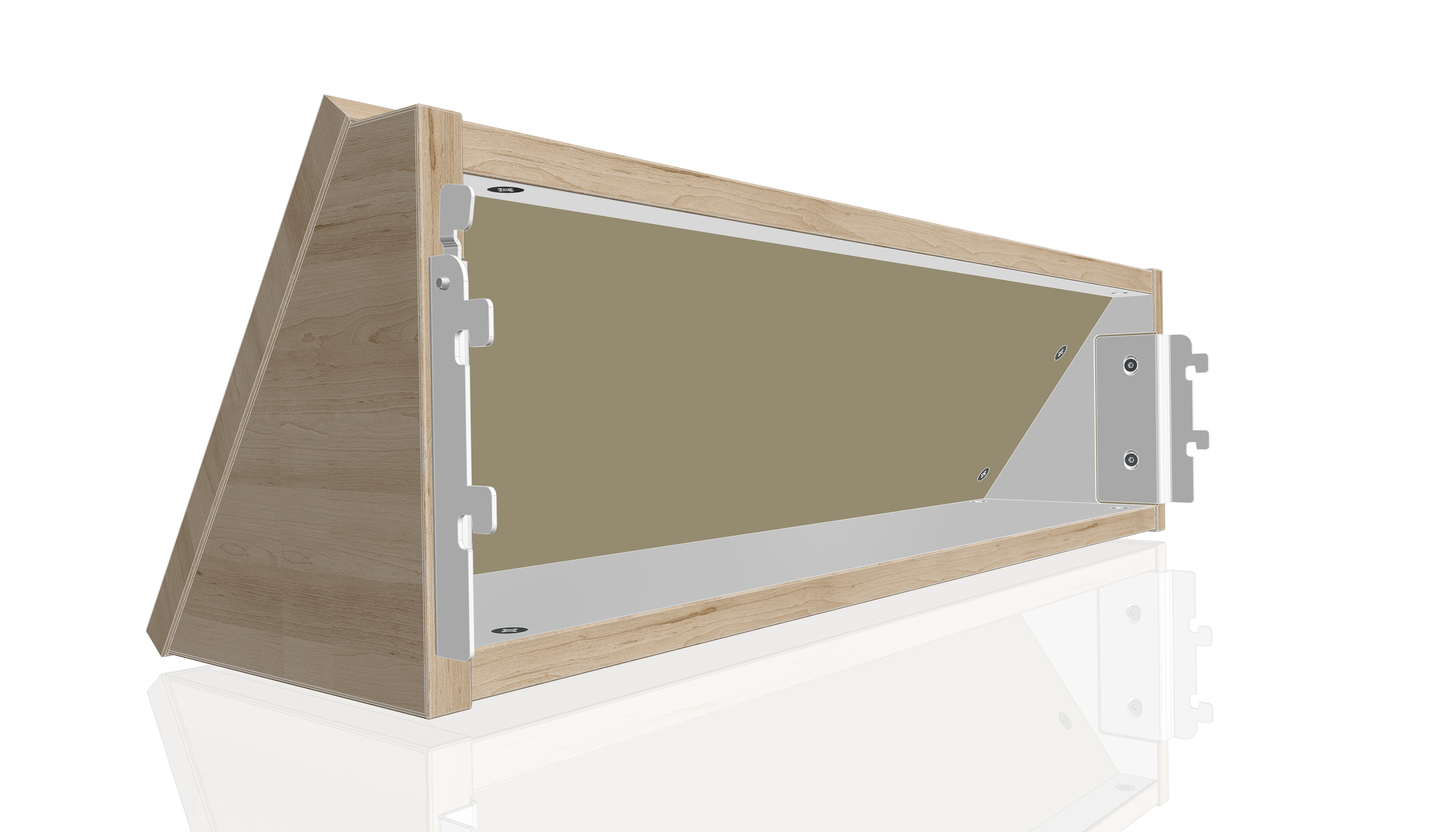

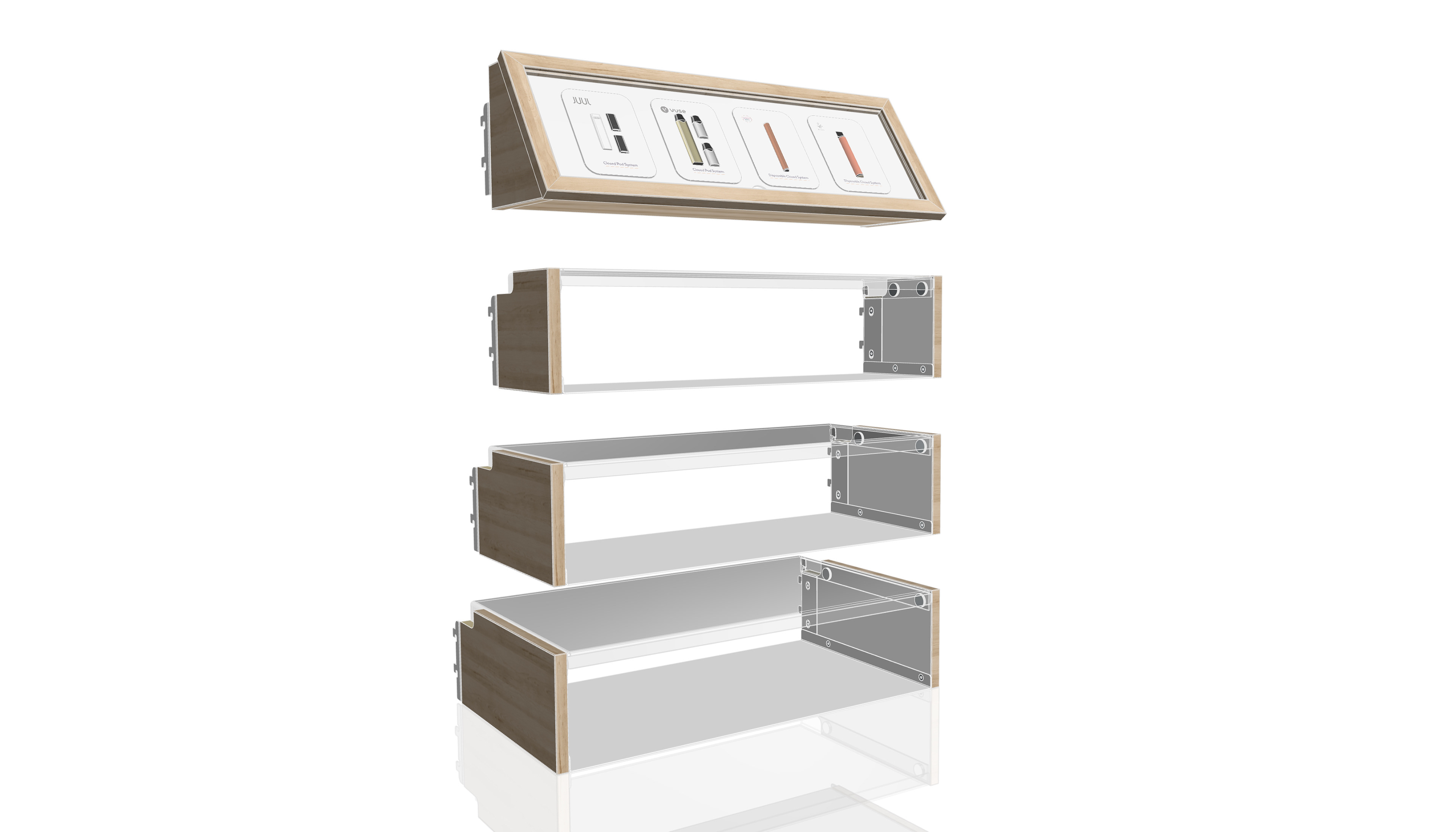

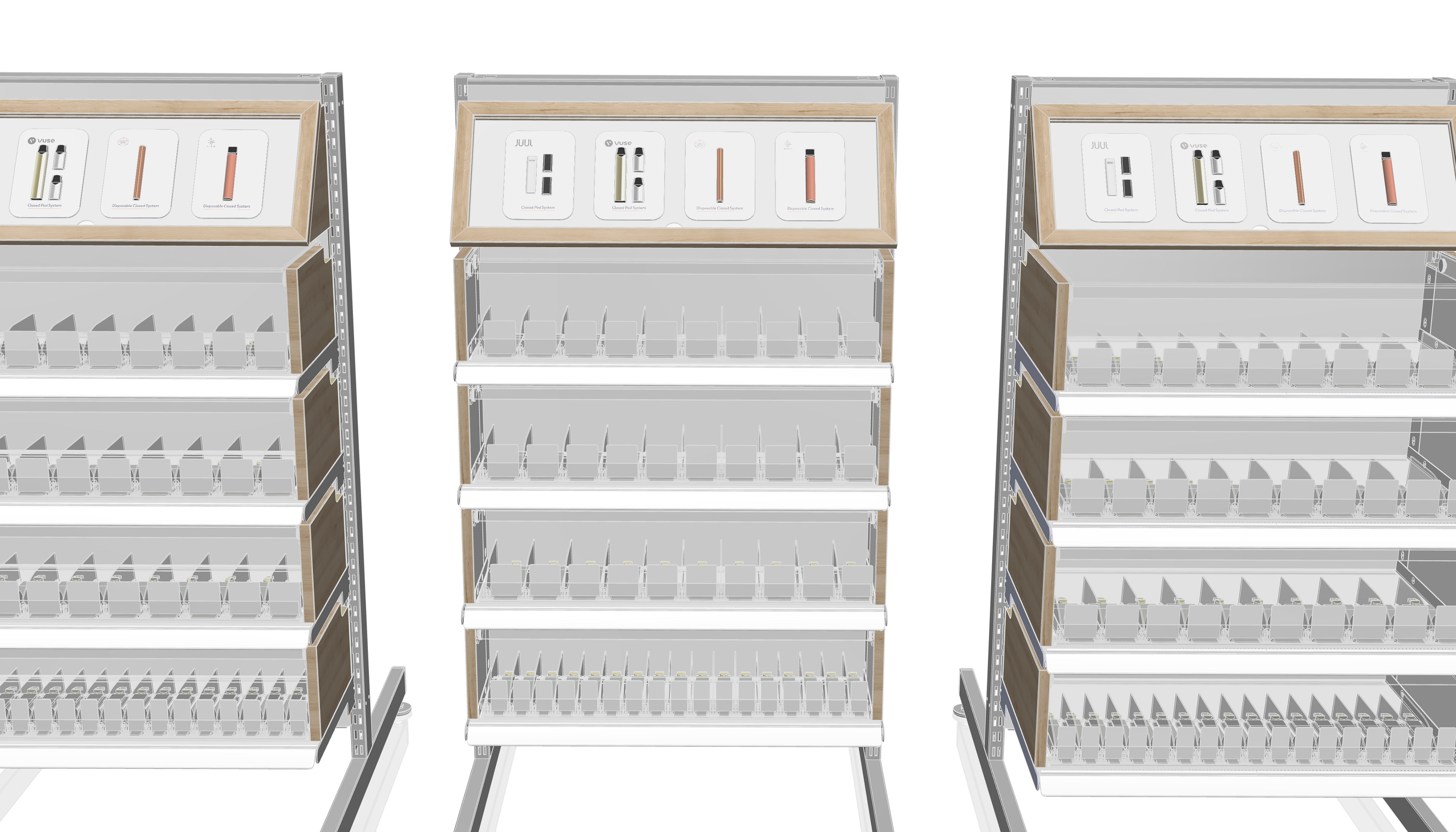

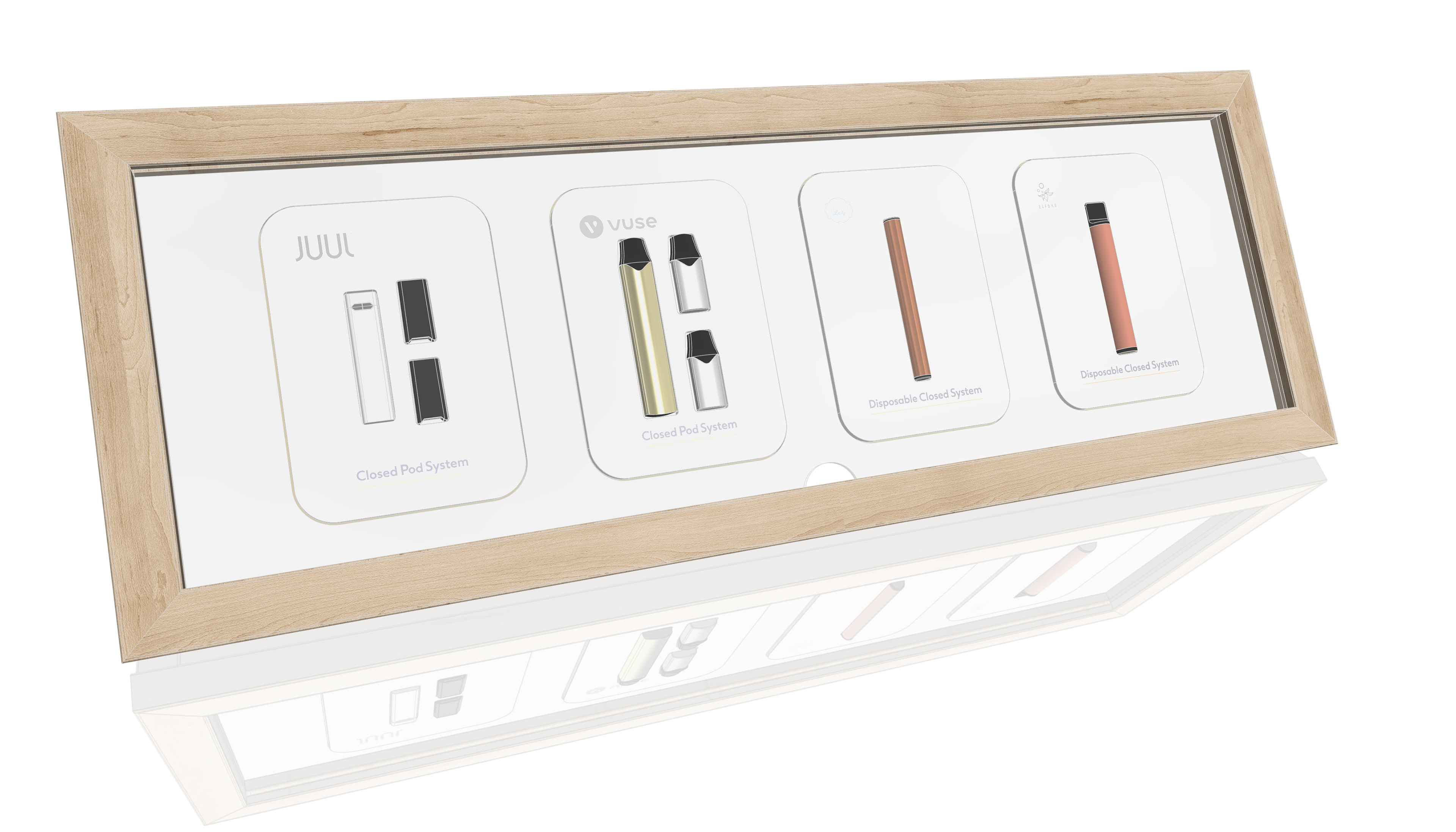

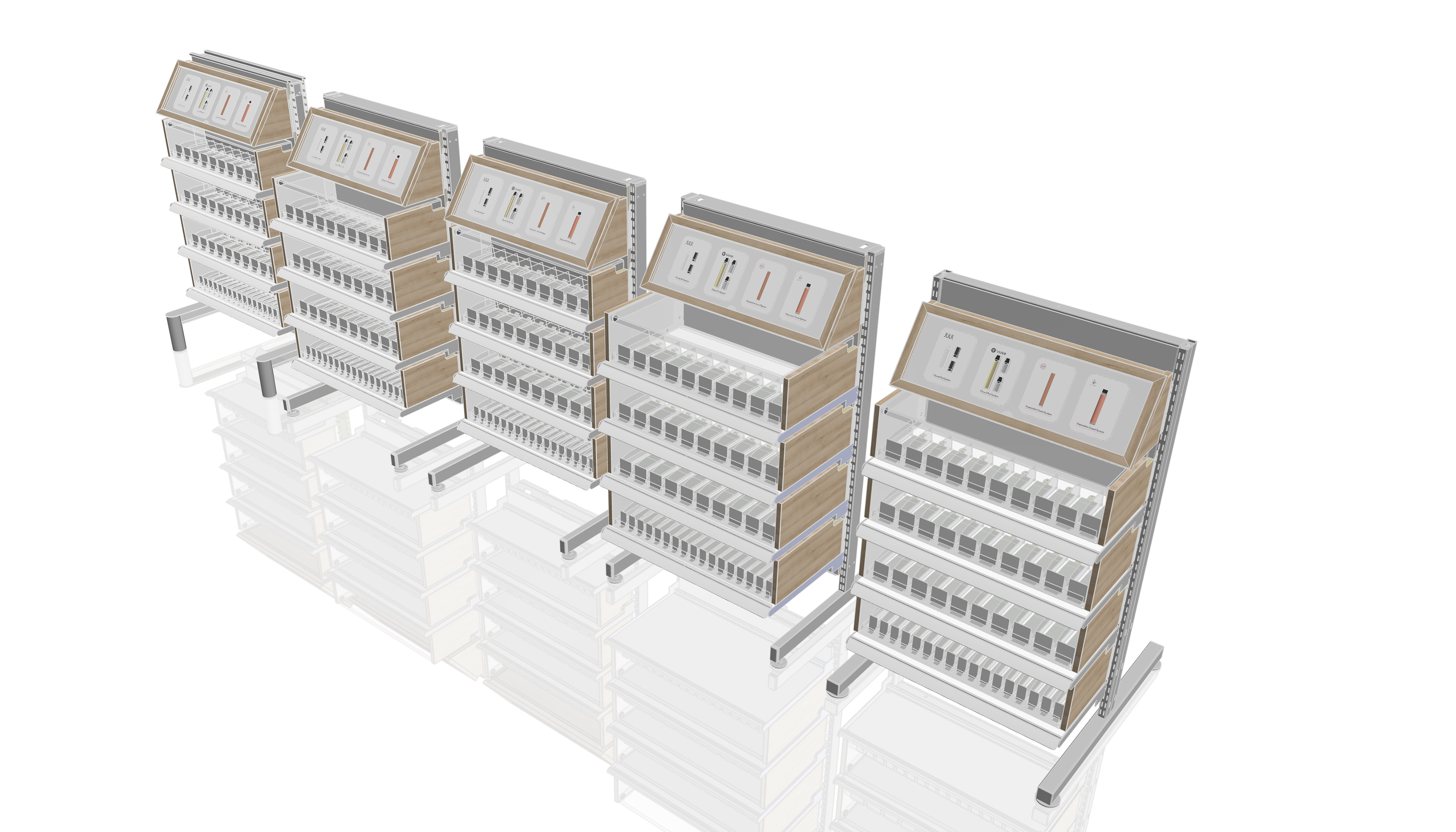

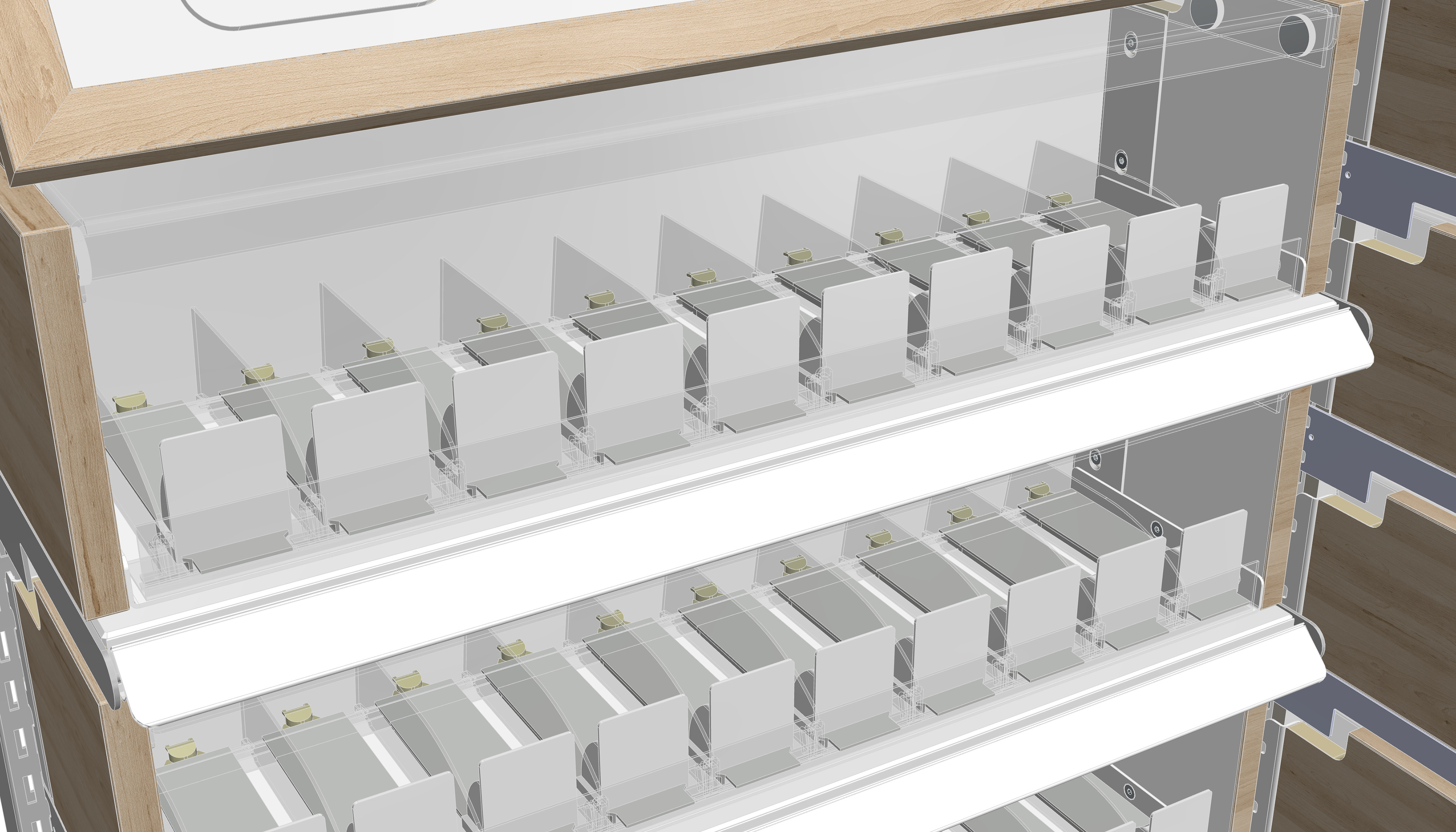

A simple redesign of a vape bay which needed to be suited for 4 different types of existing furniture in different Boots stores. The shelf options were designed to work for different depths of systems. The width of the shelves was determined by finding a common ground on all systems so the same parts can be reused.

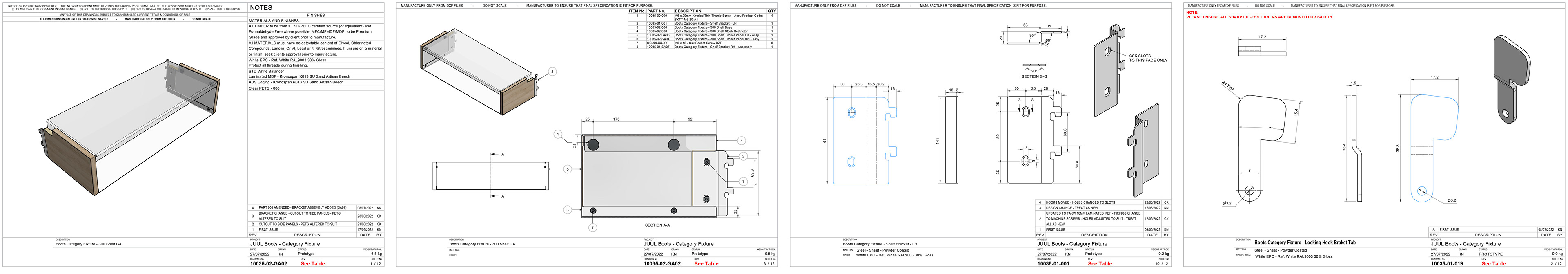

Detailed technical drawings are only available upon request in person as part of my printed portfolio.
